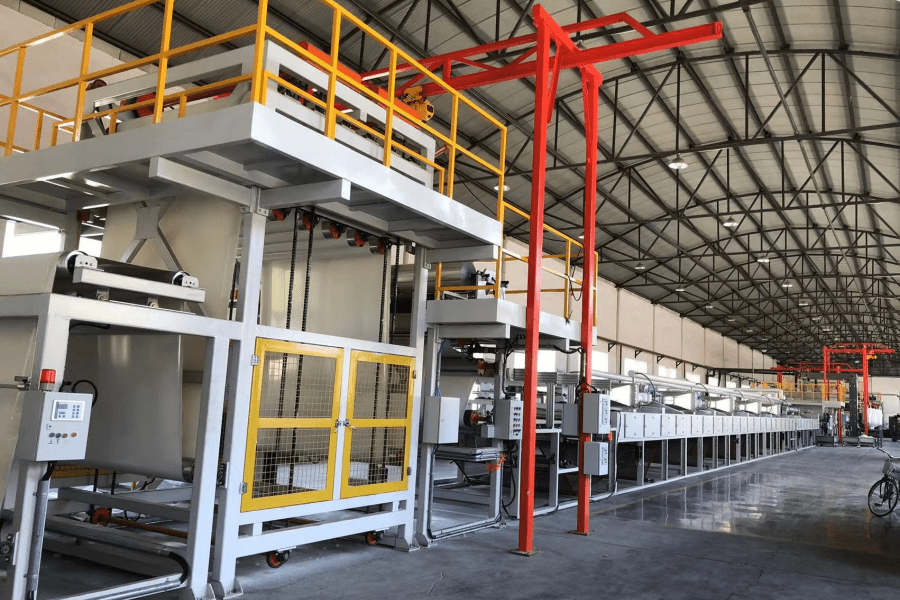

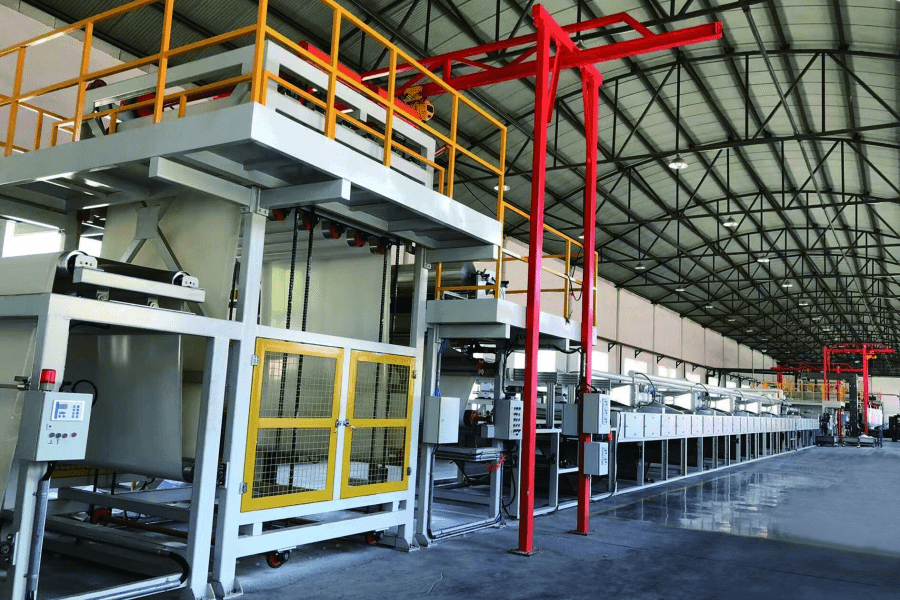

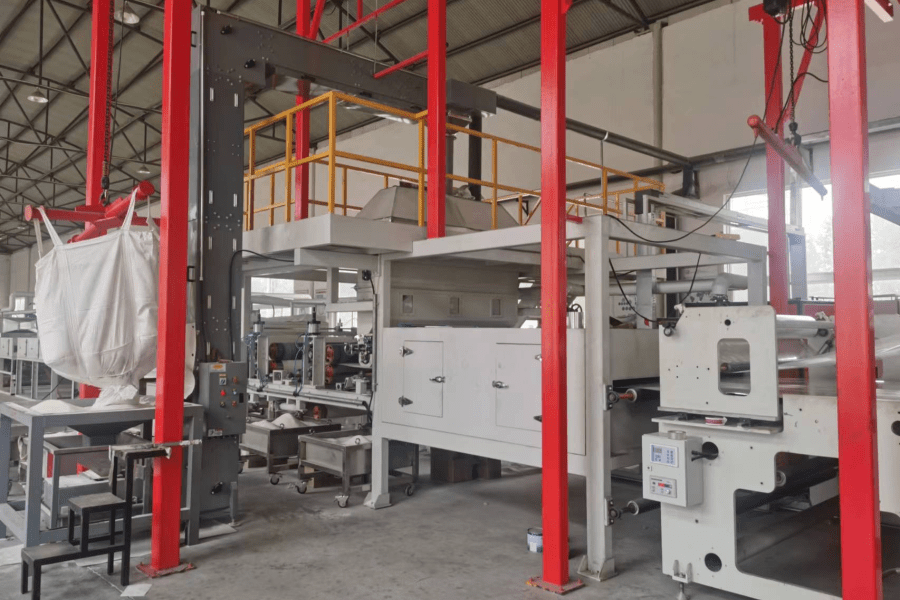

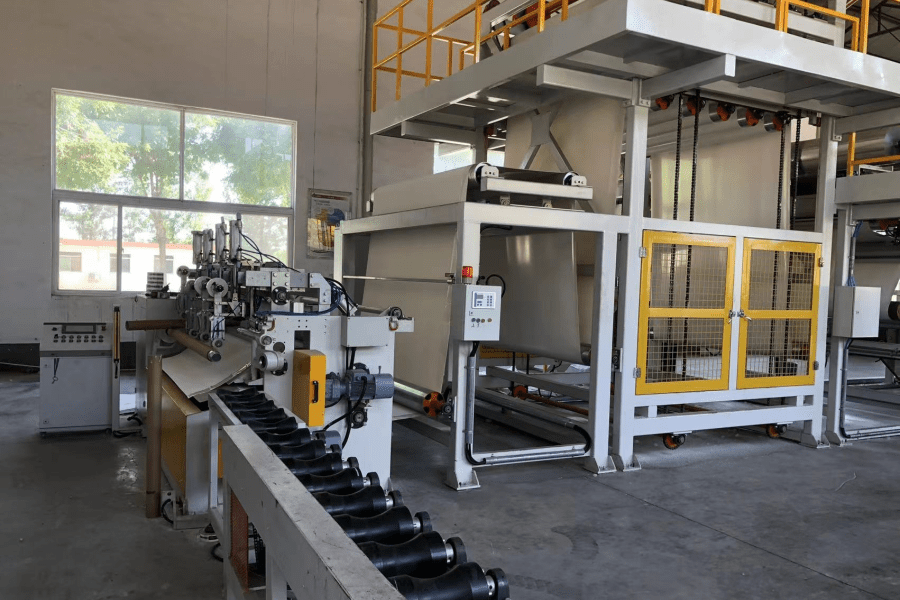

Pre-applied membrane production line is designed and made to produce none bitumen based waterproofing membrane.This kind of membrane is composed of white polymer sheet （HDPE or PVC or TPO etc.）, gule, and weather resistant granular layer (or film) on the upper surface.

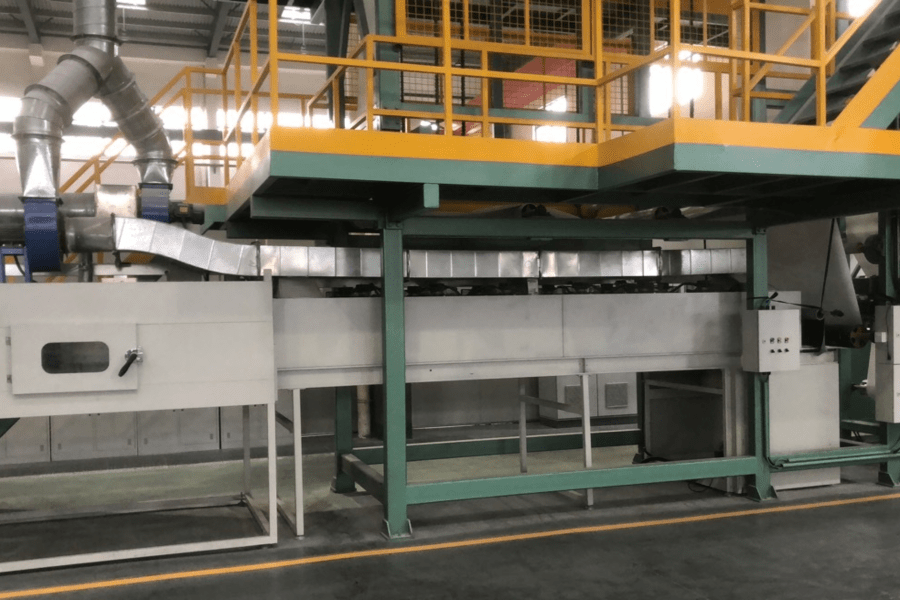

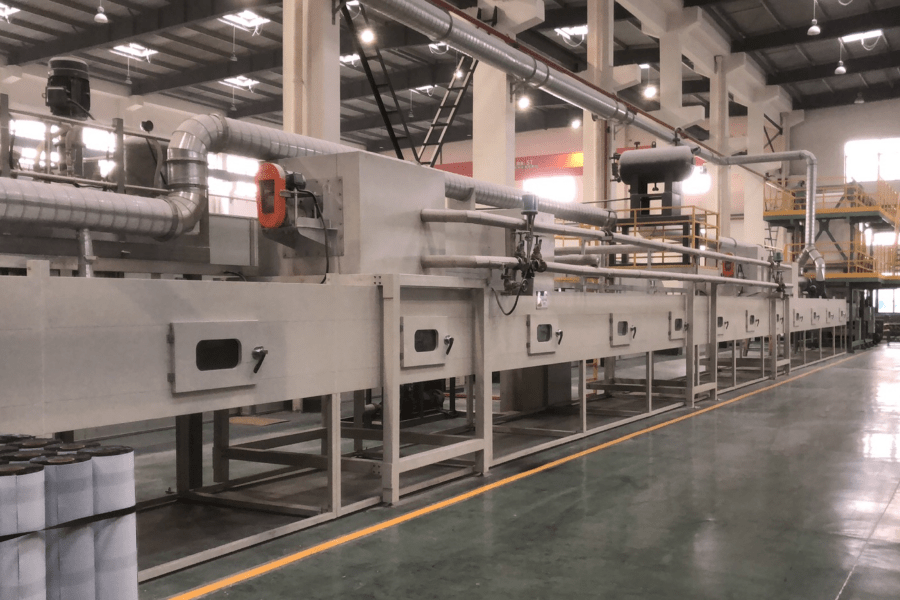

This production line is totally different than the others，the glue is waterbased and it’s very dilute cannot be coating by scraping.We made textured transfer rollers for coating, long heating tunnel for drying and severl fans for cooling. Depend on the viscidity of the water based paint, we can cover the upper surface with film or not.
Production line overview:
Power supply: ~380v±15% / 50Hz
Water supply: under 30, 18m³/h
Air supply: pressure 0.6~0.8Mpa
Base material: HDPE、PVC、TPO etc.
Gule: water based paint
Upper surface material: PET film.
Specification:
Coating process: rollers transfer
Mechanical speed: 0-15m/min
Equipment dimension: 70m L * 5m W * 7.5m H
Coating width: 1m-2m
Glue spread: 100-300g/㎡
