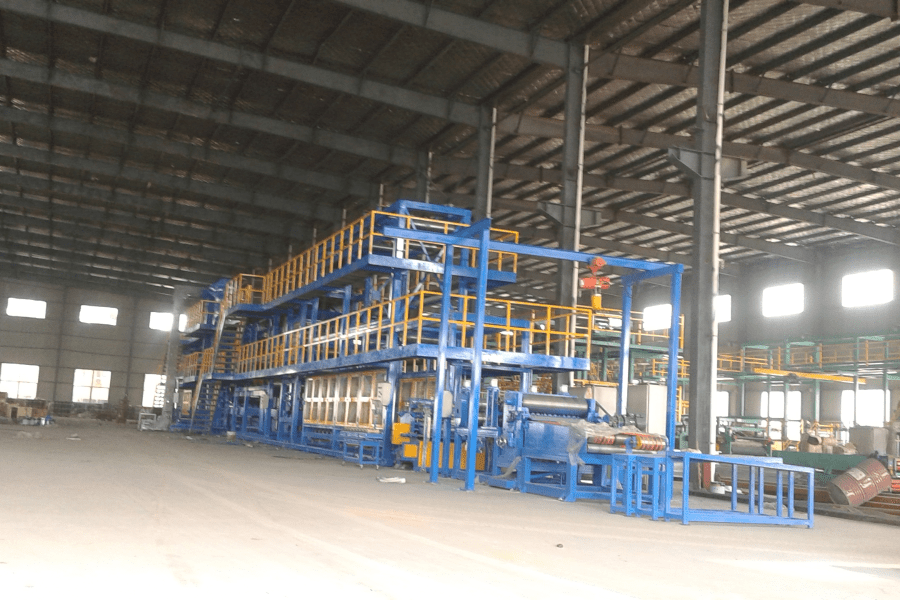

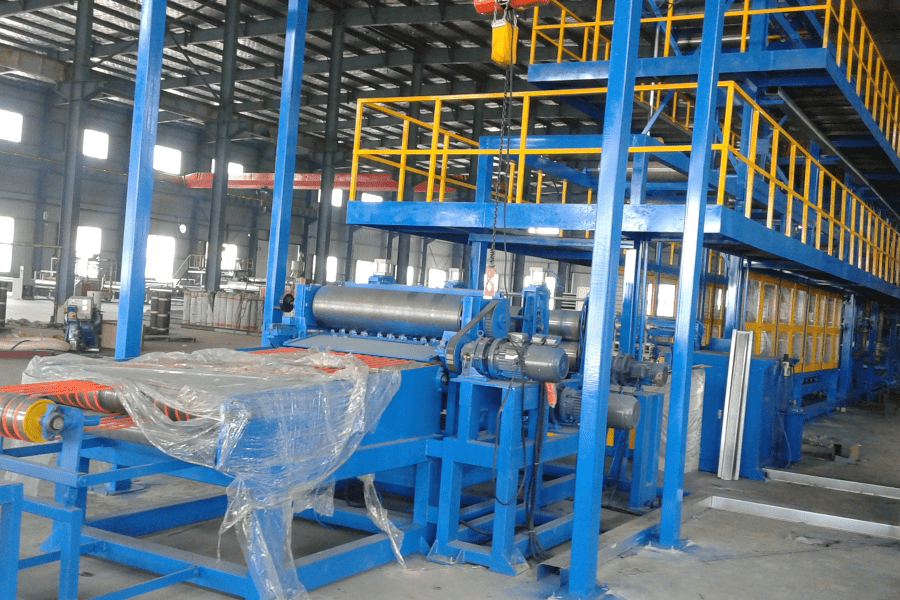

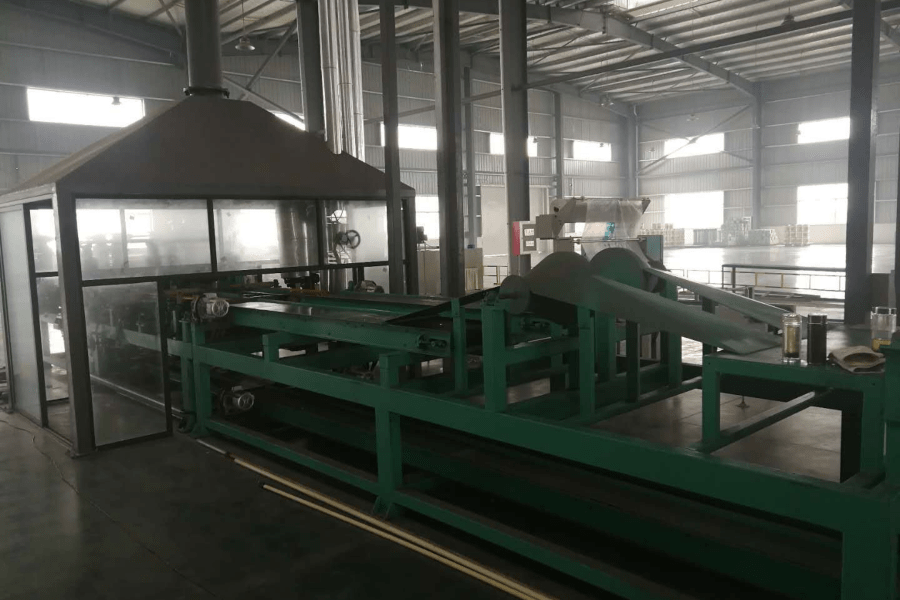

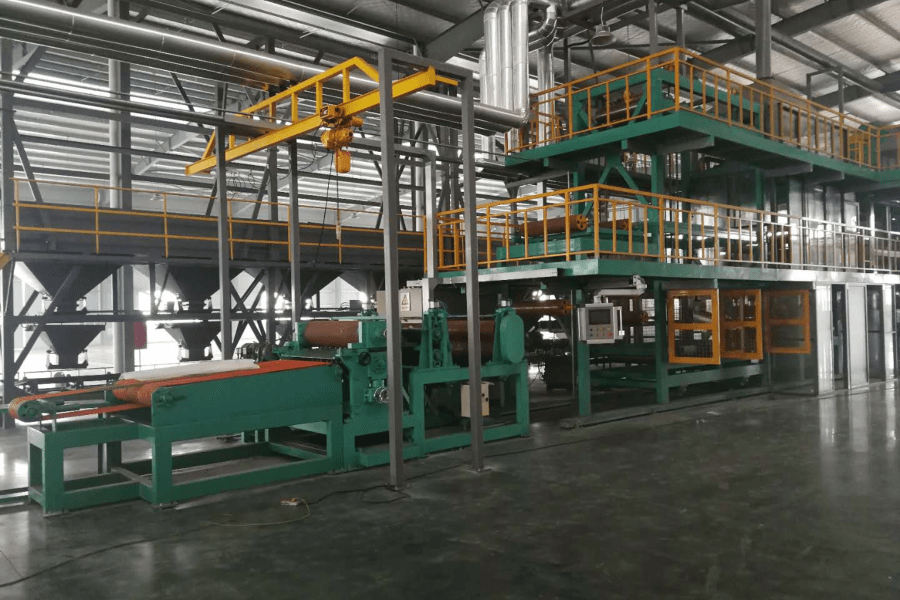

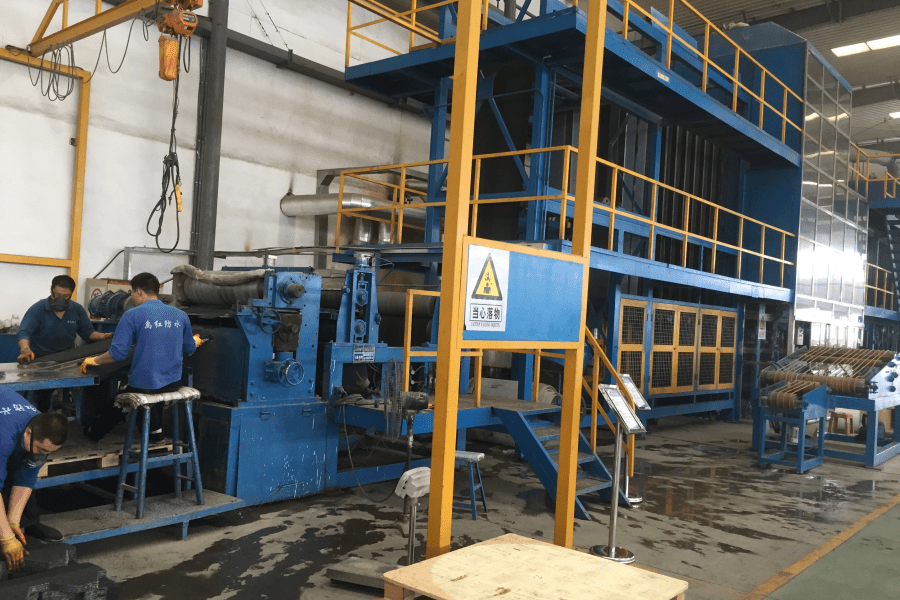

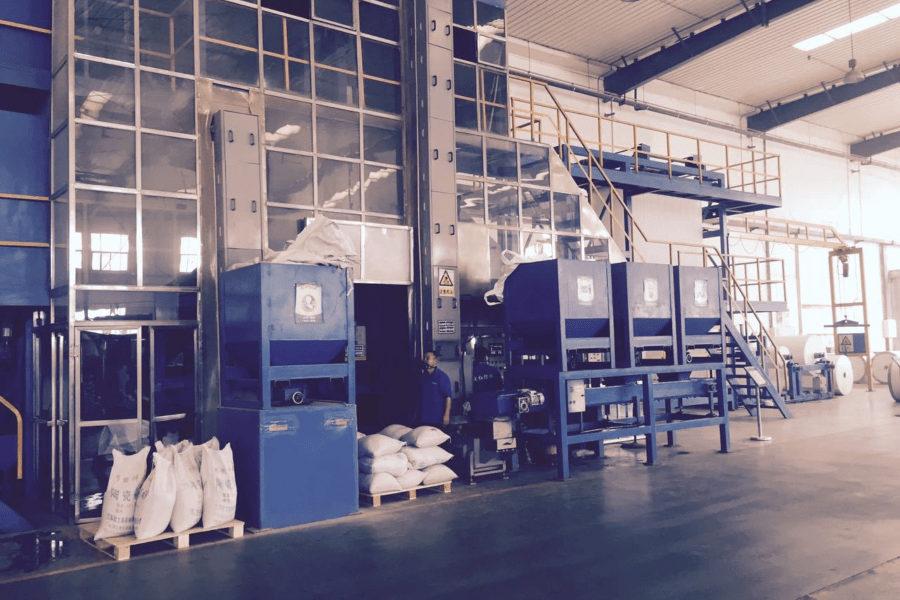

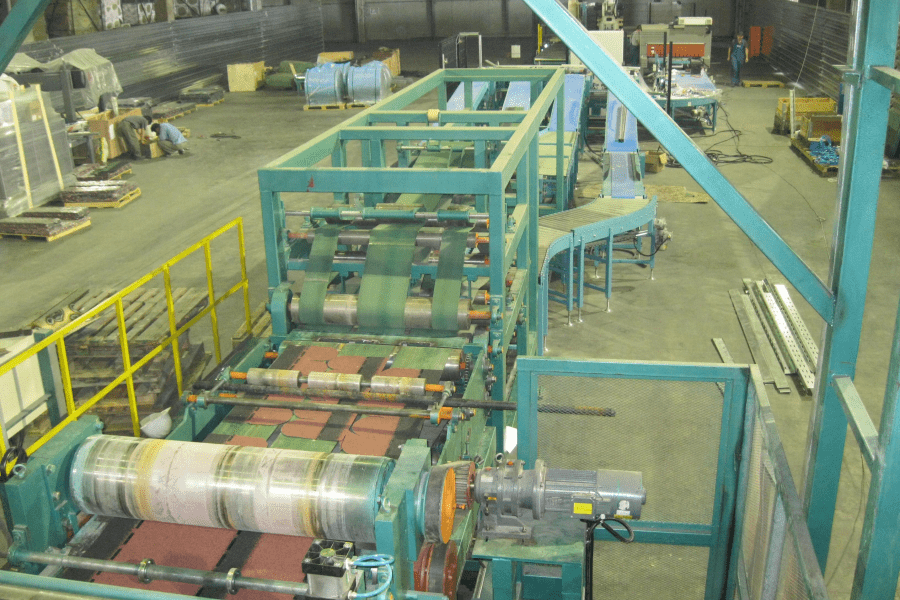

Asphalt shingle production line, this line produce membrane sheet with double sides sand surfacE, and then automatically cut the membrane sheet into pieces with different shape.
There are several different shapes for one layer asphalt shingles and double layers asphalt shingles, also we can make other shape according to customers‘ request.
Application:
Asphalt shingle is one of the most widely used roofing covers because it is relatively inexpensive and easy to install, also it doesn't require specialized accessories for roof edges or wall terminations.
Advantages:
1.Good waterproof, good weatherproof and good corrosion resistance
2.Light weight, no need to use specific accessories, easy to install
3.Wonderful appearance, it provides a series of colors and shapes in order to meet with different requirements on aesthetic taste.
Some parameter indicators of the production line:
1. Manufacture capacity:5,000,000 ㎡ of asphalt shingles，as per 8 hours per working day, 300 days per year, calculated on basis of 2.6mm thick shingle.
2.Speed of the production line:0-45m/min，adjustable.
3.Voltage: ~380v±15% / 50Hz
Asphalt shingle to be produced:
1.Base materials: fiberglass tissue
2.Compound materials: oxidized bitumen/modified bitumen，modifer, filler
3.Surfacing:
Top side: two kinds of granules in different colours
Bottom side: sand / PE film
4.Shingle shape:
(1)Single layer: (a)rectangular shape (b)HEXAGONAL shape (c)circular type
(2)Laminated layer.
Consumption of the production line:
1.Compressed air: 1m³/min, 0.7Mpa
2.Capacity of the line: 130 KW
3.Water usage: 350kg per day
Main workshop: L80 x W8 x H9m
