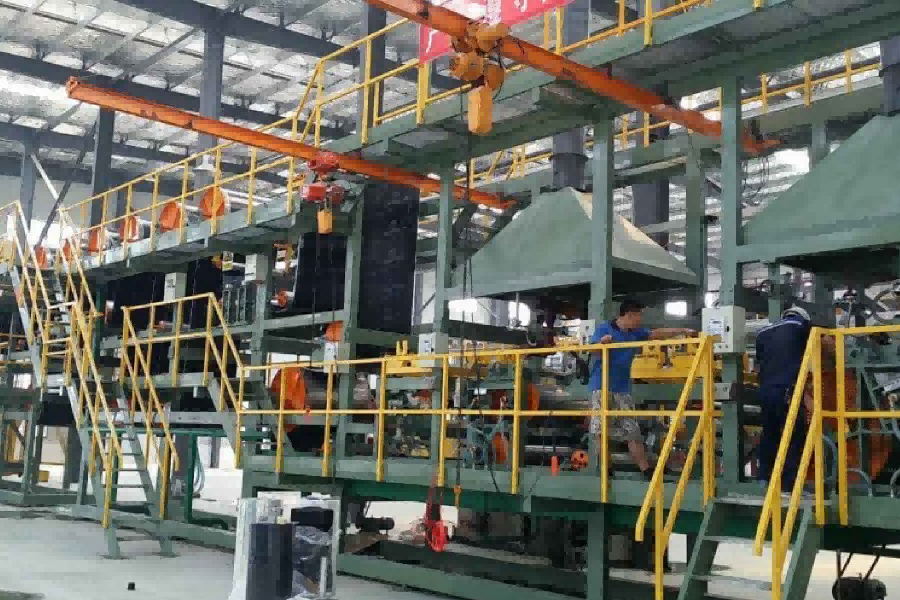

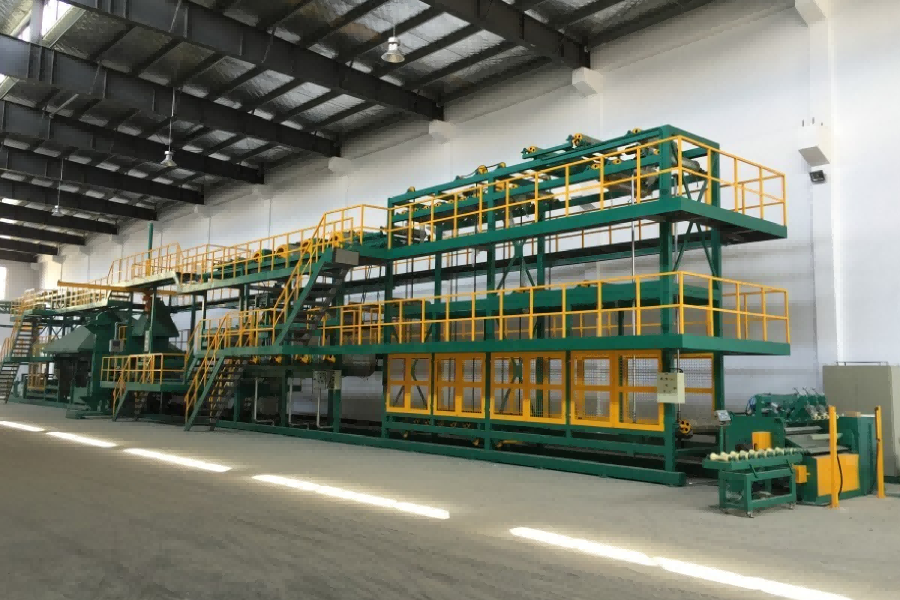

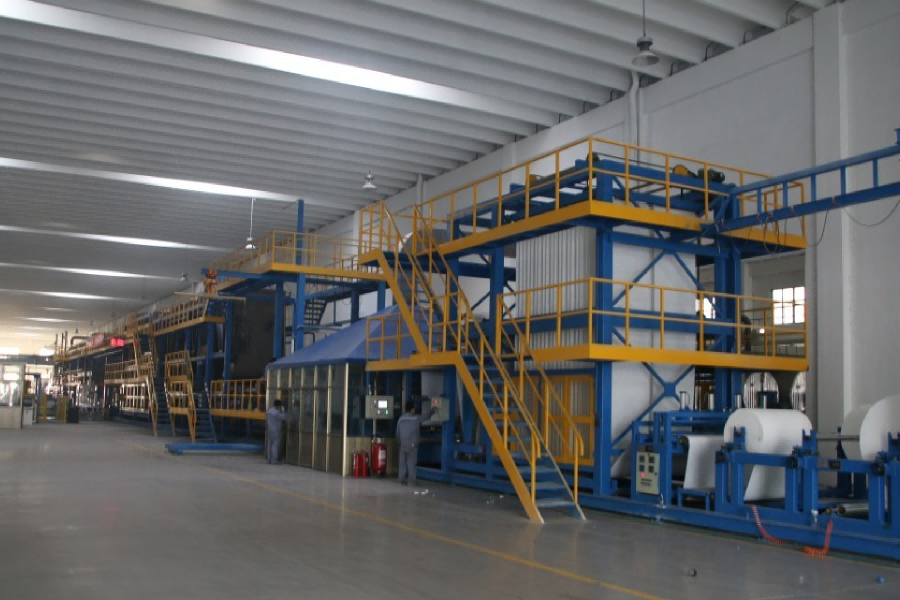

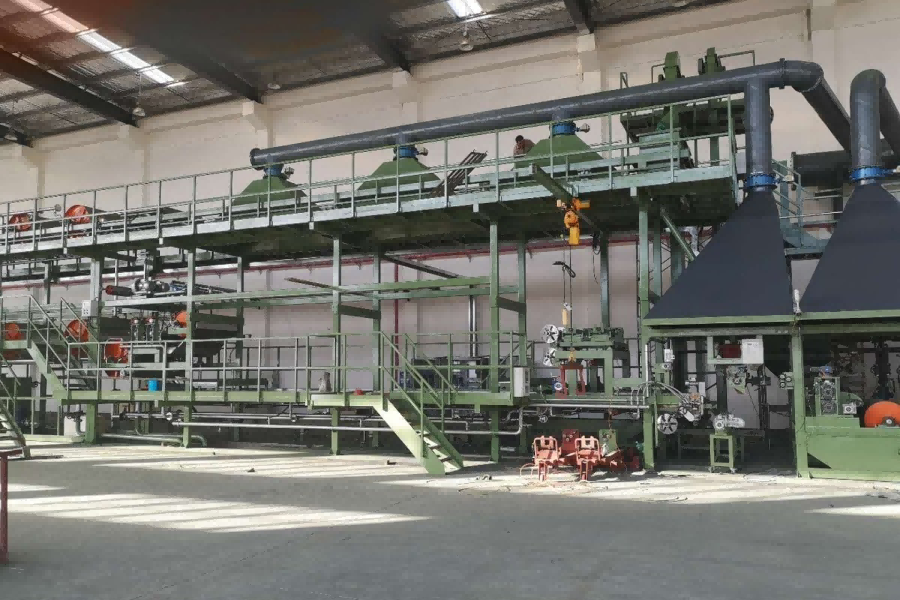

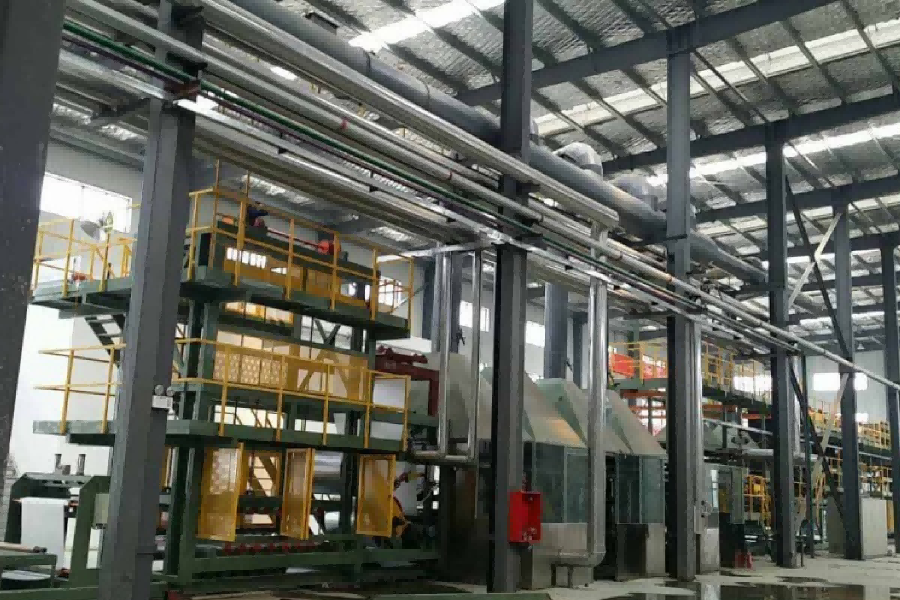

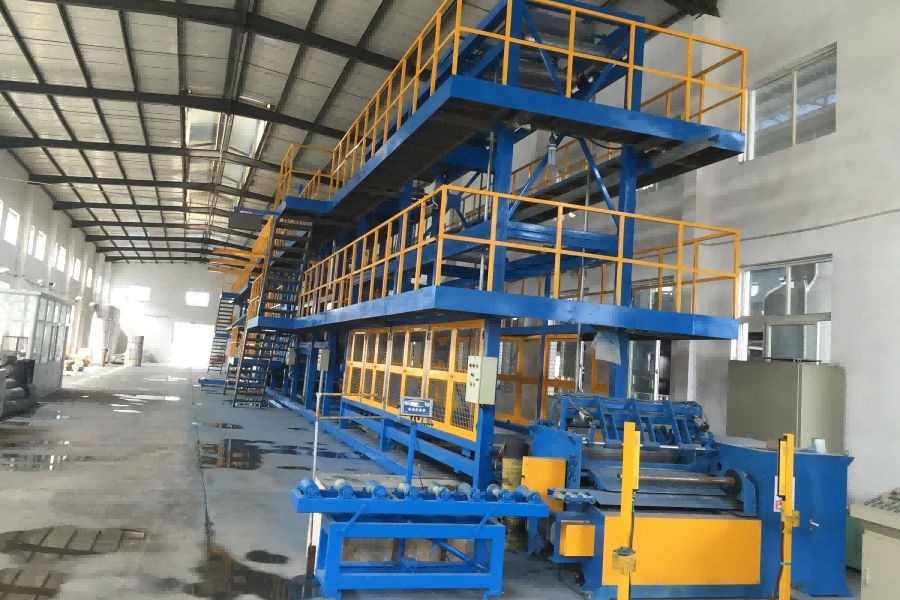

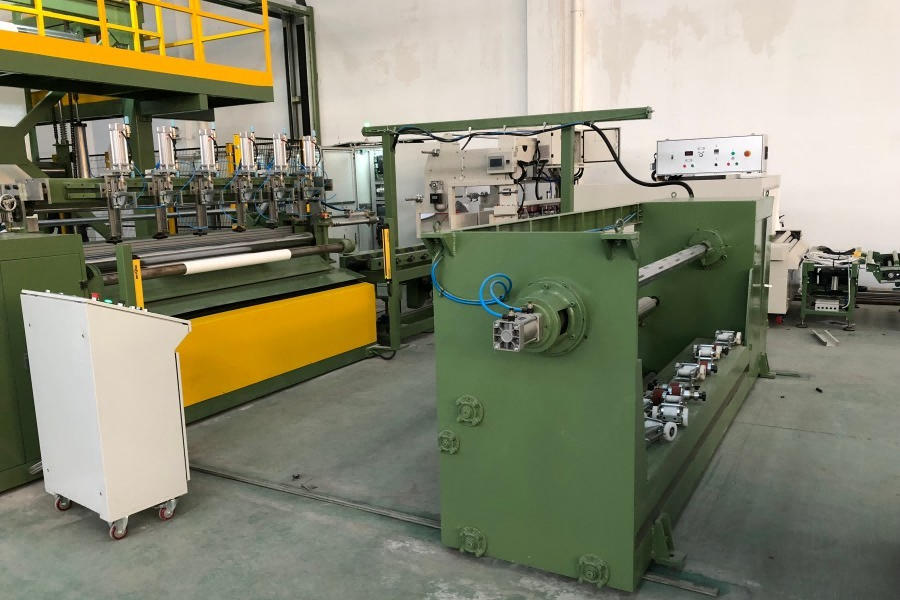

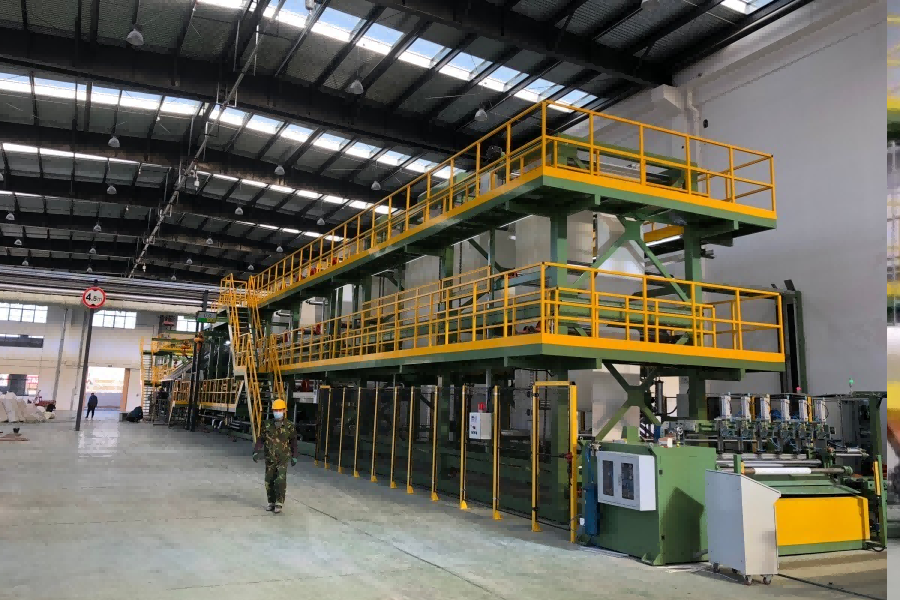

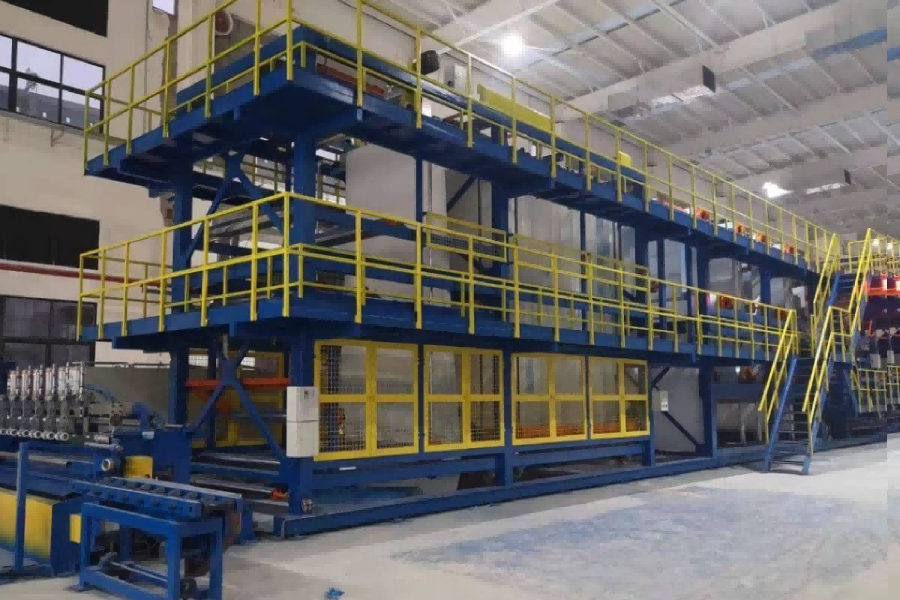

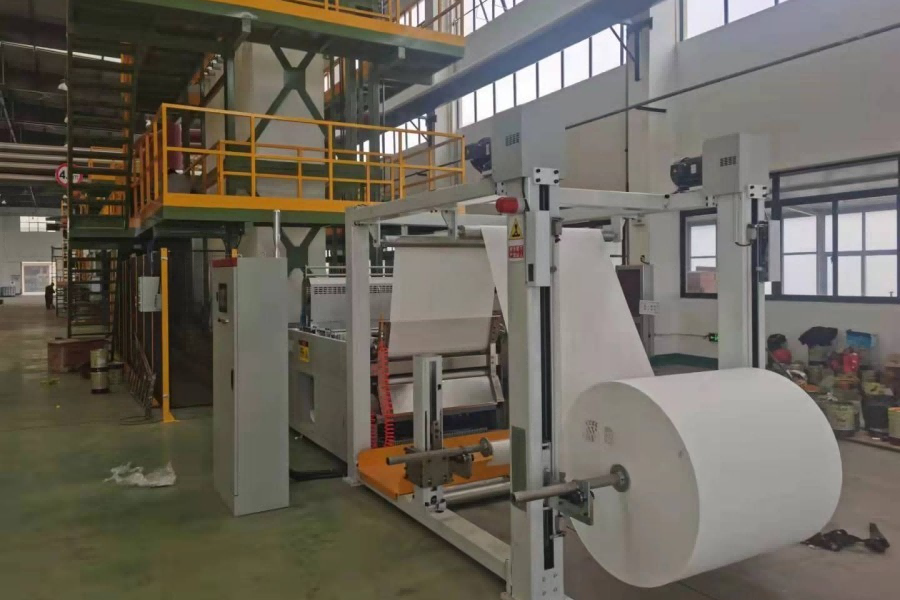

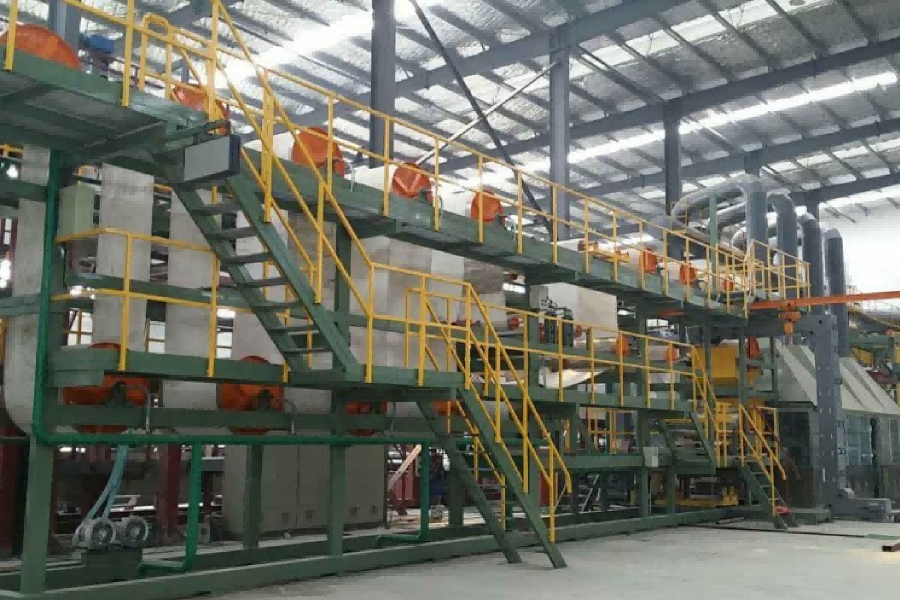

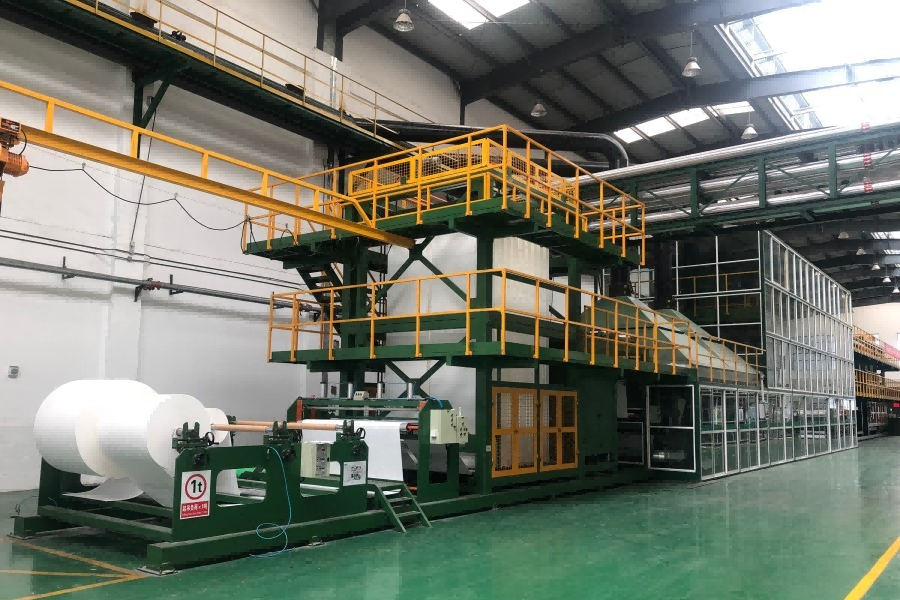

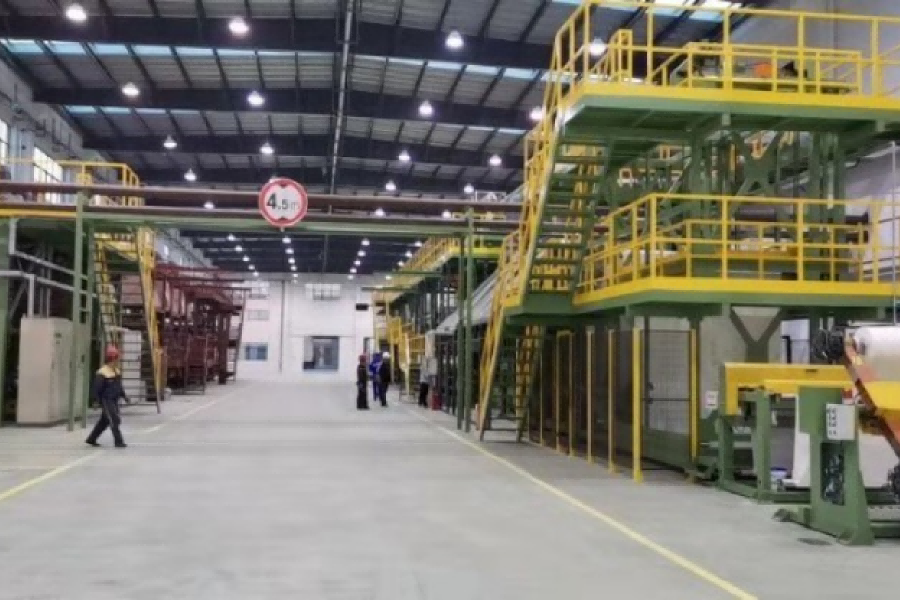

This production line produce elastomer modified bitumen waterproofing membrane.Regularly it is 1 meter wide,but wider membrane can be customized.

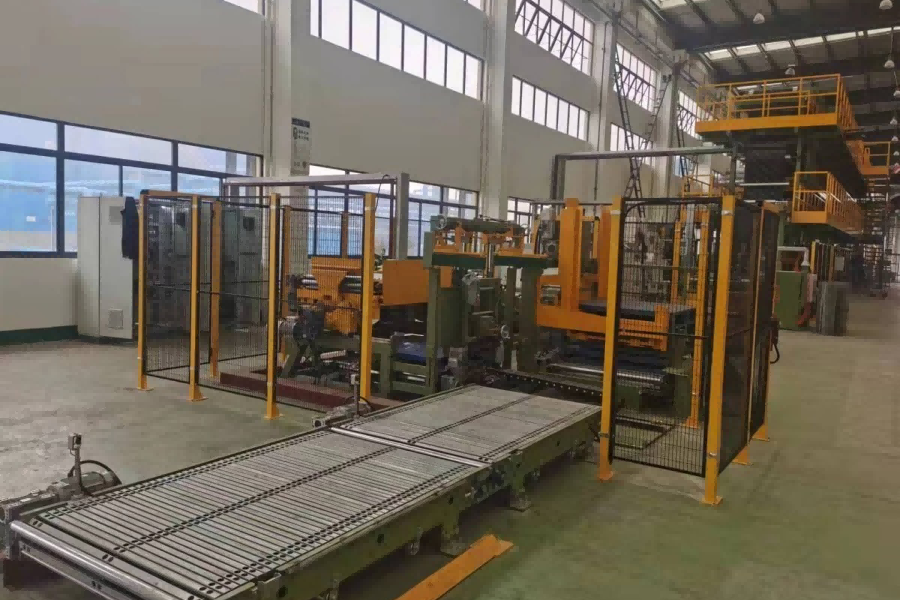

The elastomer modified bitumen is sheet-like material that can be curled， based on polyester felt, and SBS/APP modified bitumen as coating layer, covering with PE film, fine sand or mineral granules as insulating materials on the surface, and cut and wind the membrane sheet into specified length.
Application:
Elastomer modified bitumen membrane is widely used in industrial and civil building,such as roof,basement,toilet,bridge,park,tunnel for waterproof and moistureproof.
Advantages:
1.High tensile strength and elongation rate,strong adaptability for substrate shrinking distortion and cracks.
2.Superier high & low temperature resistance.
3.Good resistance to tearing,fatigue,corrosion ,mold and breakage.
Some parameter indicators of the production line:
1. Manufacture capacity:15,000,000 ㎡ of membrane，as per 20 hours per working day,300 days per year，calculated on basis of 3mm thick membrane.
2. Speed of the production line:0-60m/min，adjustable.
3. Voltage: ~380v±15% / 50Hz
Membrane to be produced:
1.Base materials: polyester ,fiberglass
2.Compound materials: modified bitumen，modifer, filler
3.Surfacing: PE/PET film,sand,granule
Consumption of the production line:
1.Compressed air: 1m³/min, 0.7Mpa
2.Capacity of the line: 130 KW
3.Water usage: 350kg per day

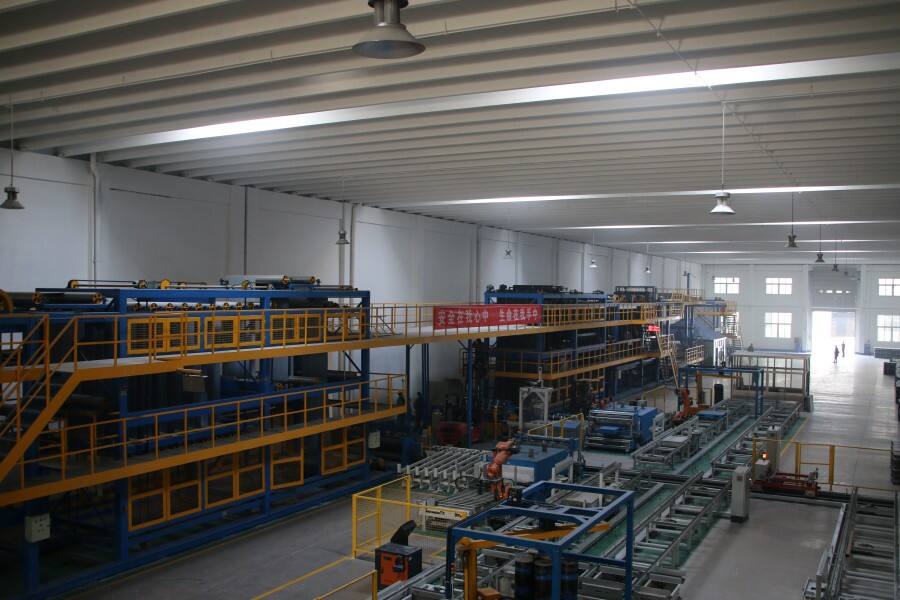

Main workshop: L75 x W8 x H8m
