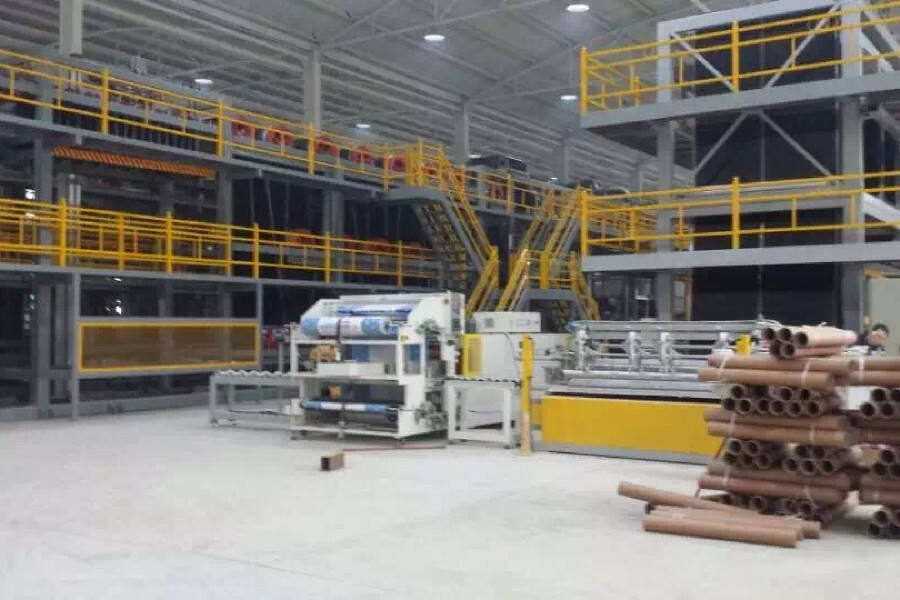

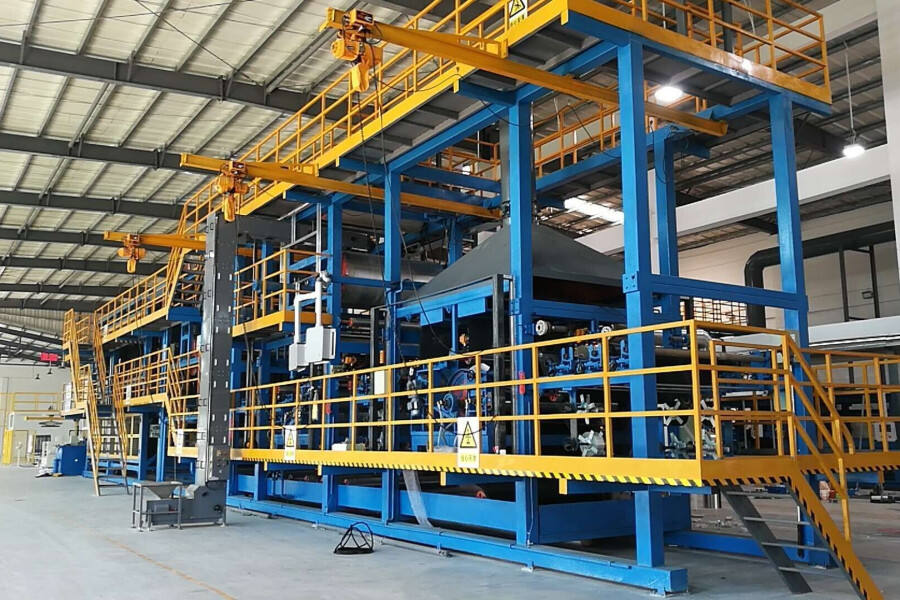

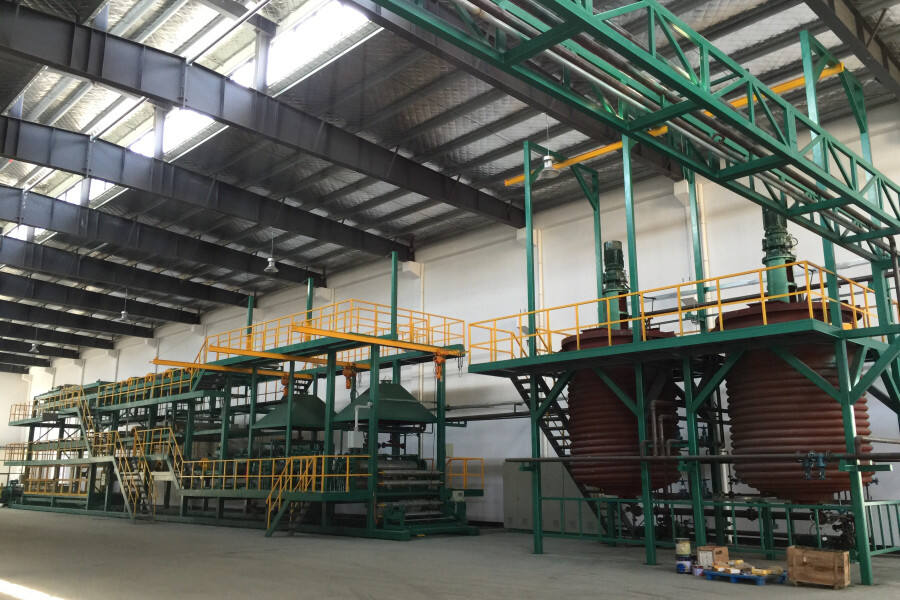

This production line produce self-adhesive modified bitumen waterproofing membrane。 Regularly it is 1 meter wide，but wider membrane can be customized.
The self-adhesive modified bitumen is sheet-like material that can be curled， applied the bitumen compound directly on the film without carrier，the surface covering with PE film or sand as insulating materials on the surface， and cut and wind the membrane sheet into specified length.
Application:
Self-adhesive bitumen membrane is widely used in non-exposed areas such as basement,tunnel,bathroom.
Advantages:
1.Cold applied,safety and environmental
2.Convenient construction,low requirement for dryness
3.Self-healing
Some parameter indicators of the production line:
1. Manufacture capacity：15,000,000 ㎡ of membrane，as per 20 hours per working day， 300 days per year，calculated on basis of 1.5mm thick membrane.
2. Speed of the production line：0-60m/min，adjustable.
3. Voltage: ~380v±15% / 50Hz
Membrane to be produced:
1.Compound materials: modified bitumen,modifer,filler
2.Surfacing: PE/PET film,sand;
Consumption of the production line:
1.Compressed air: 1m³/min,0.7Mpa
2.Capacity of the line: 90 KW
3.Water usage: 350kg per day
Main workshop: L45 x W8 x H8m
