Pre-applied membrane production line is designed and made to produce none bitumen based waterproofing membrane。 This kind of membrane is composed of white polymer sheet （HDPE or PVC or TPO etc.）, gule, and weather resistant granular layer (or film) on the upper surface.

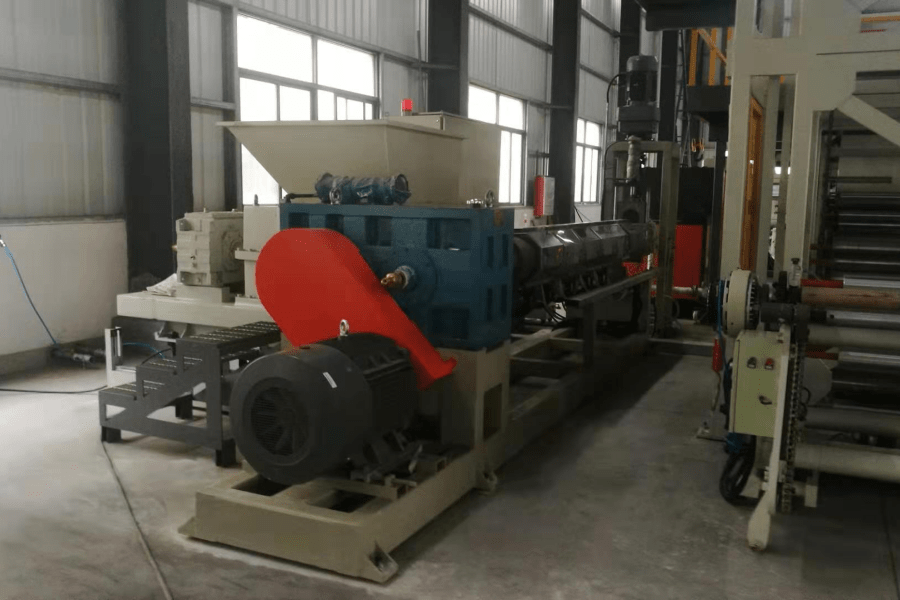

This production line is designed for butyl rubber coating, the butyl rubber is supplied by the screw extruder and coated by scraping.
The upper surface above the butylrubber is film.
Production line overview:
Power supply: ~380v±15% / 50Hz
Water supply: under 30℃, 18m³/h
Air supply: pressure 0.6~0.8Mpa
Base material: HDPE、PVC、TPO etc.
Gule: butyl rubber
Upper surface material: PET film.
Specification:
Coating process: scrape coating
Mechanical speed: 0-15m/min
Equipment dimension: 20m L * 5m W * 7.5m H
Coating width: 1m-2m
Glue spread: 100-500g/㎡
